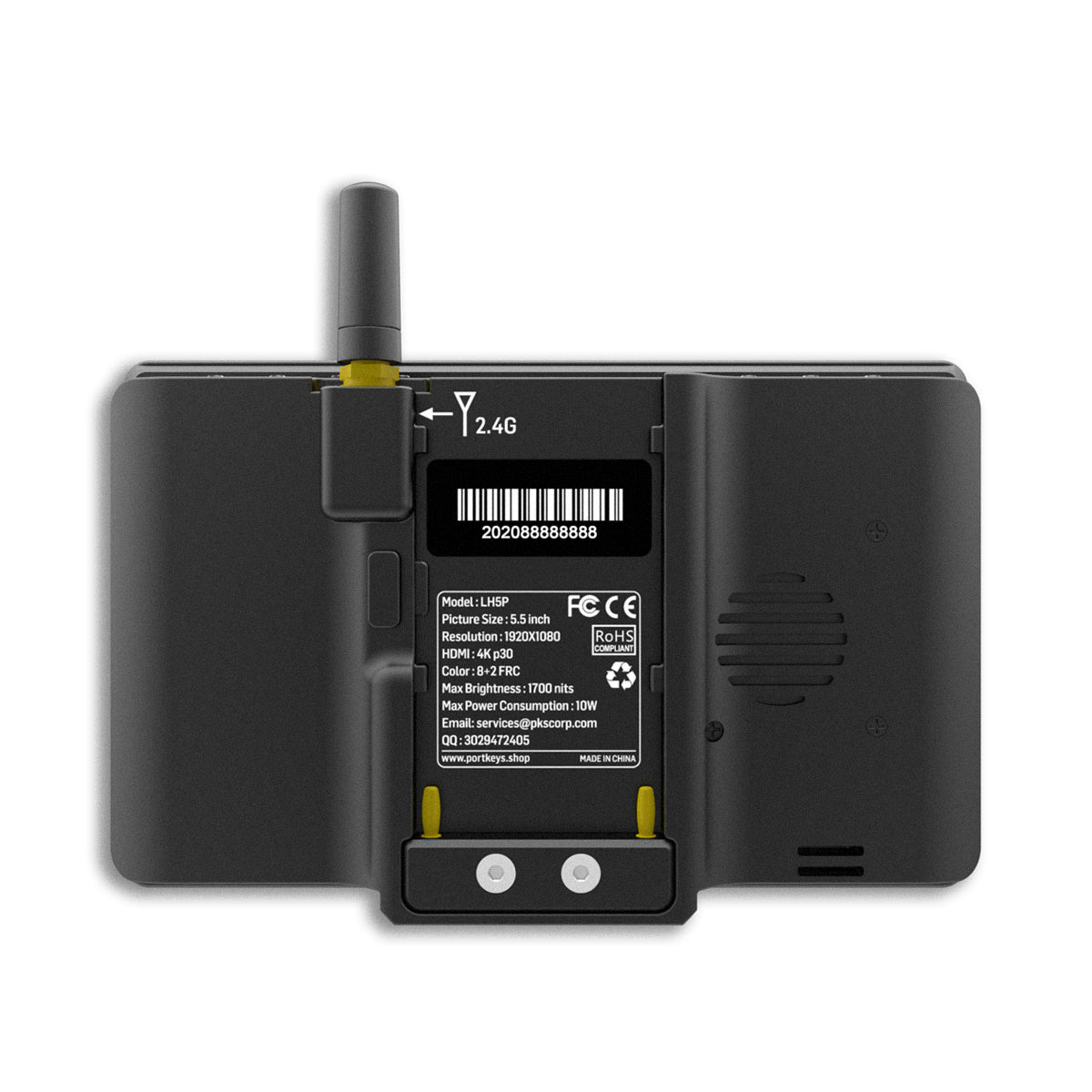

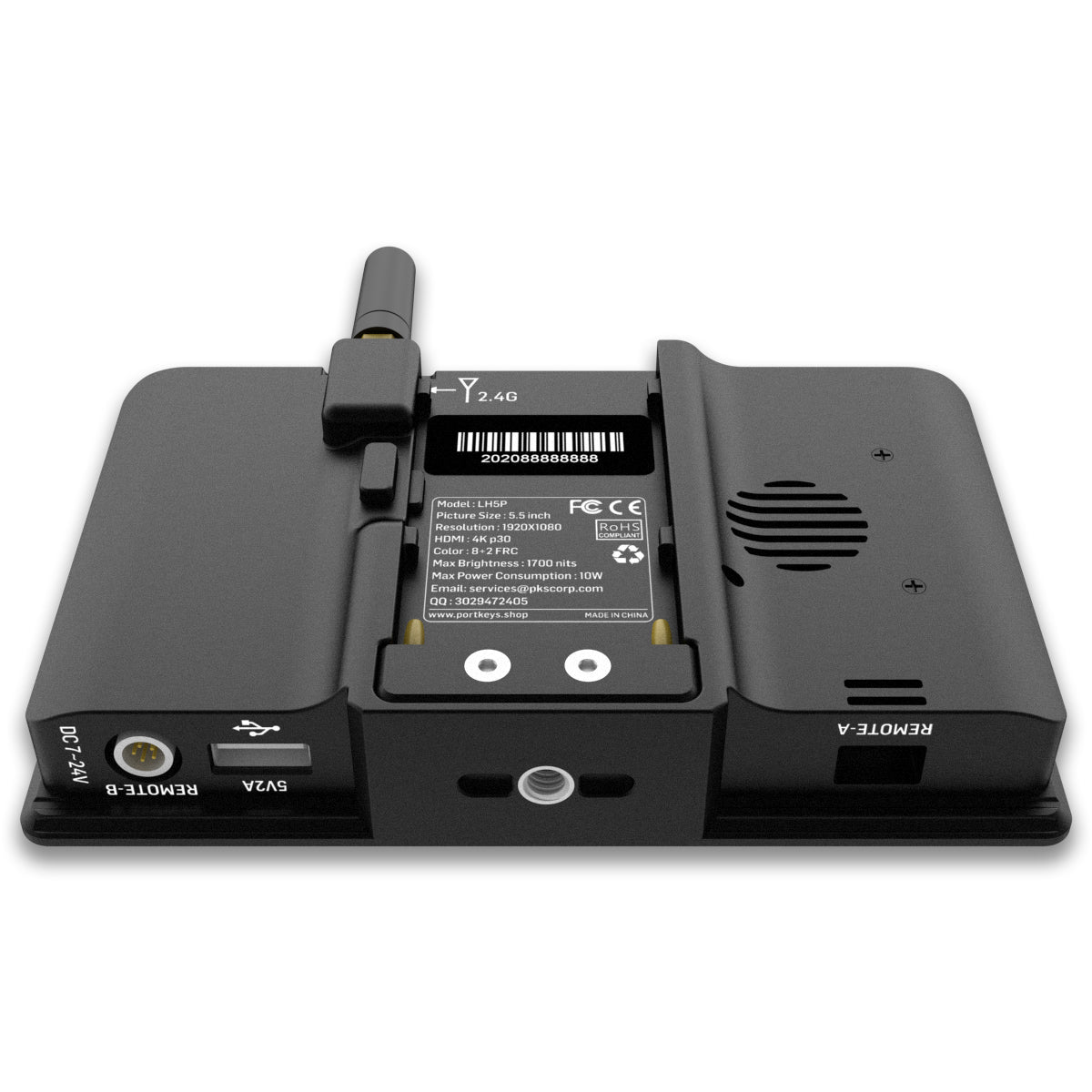

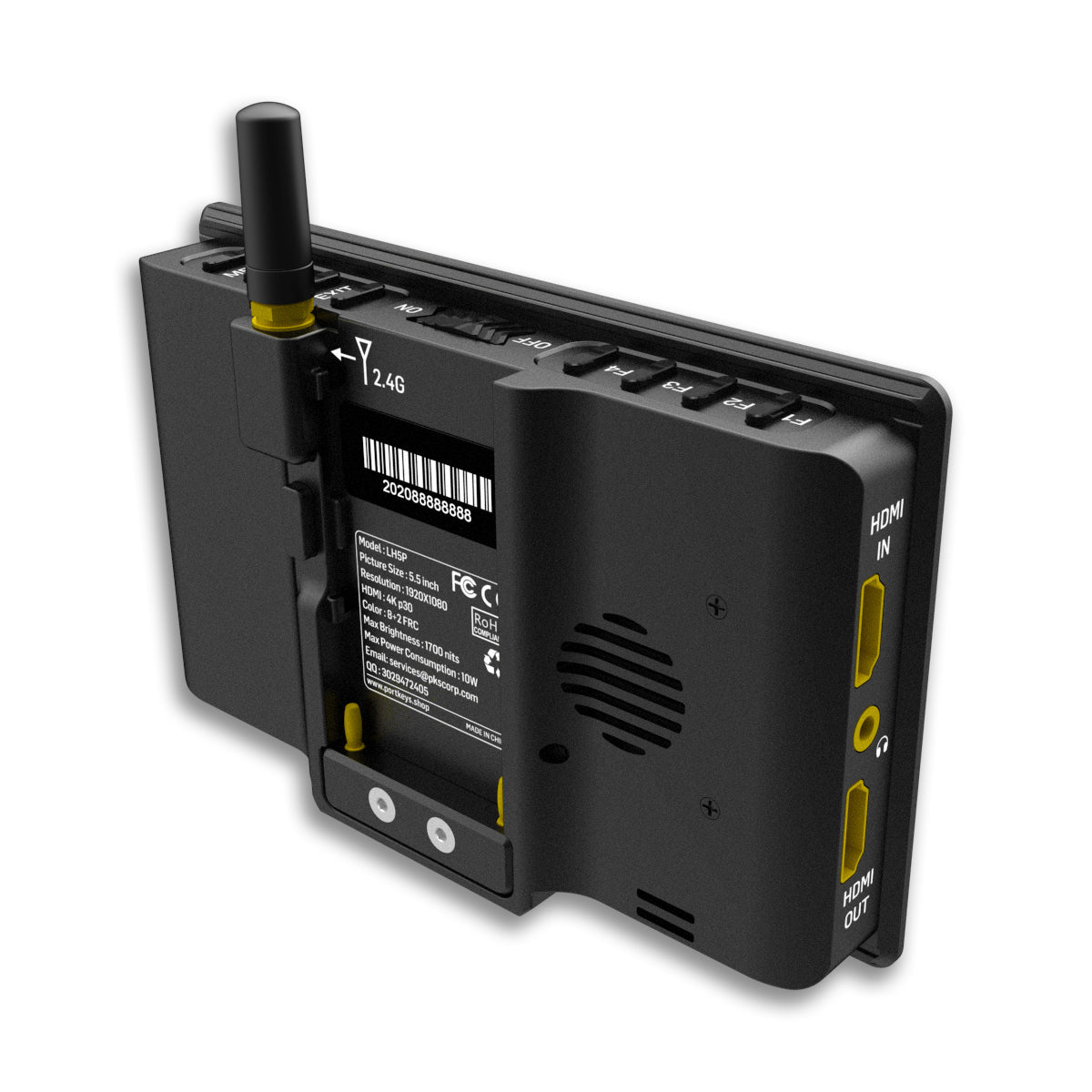

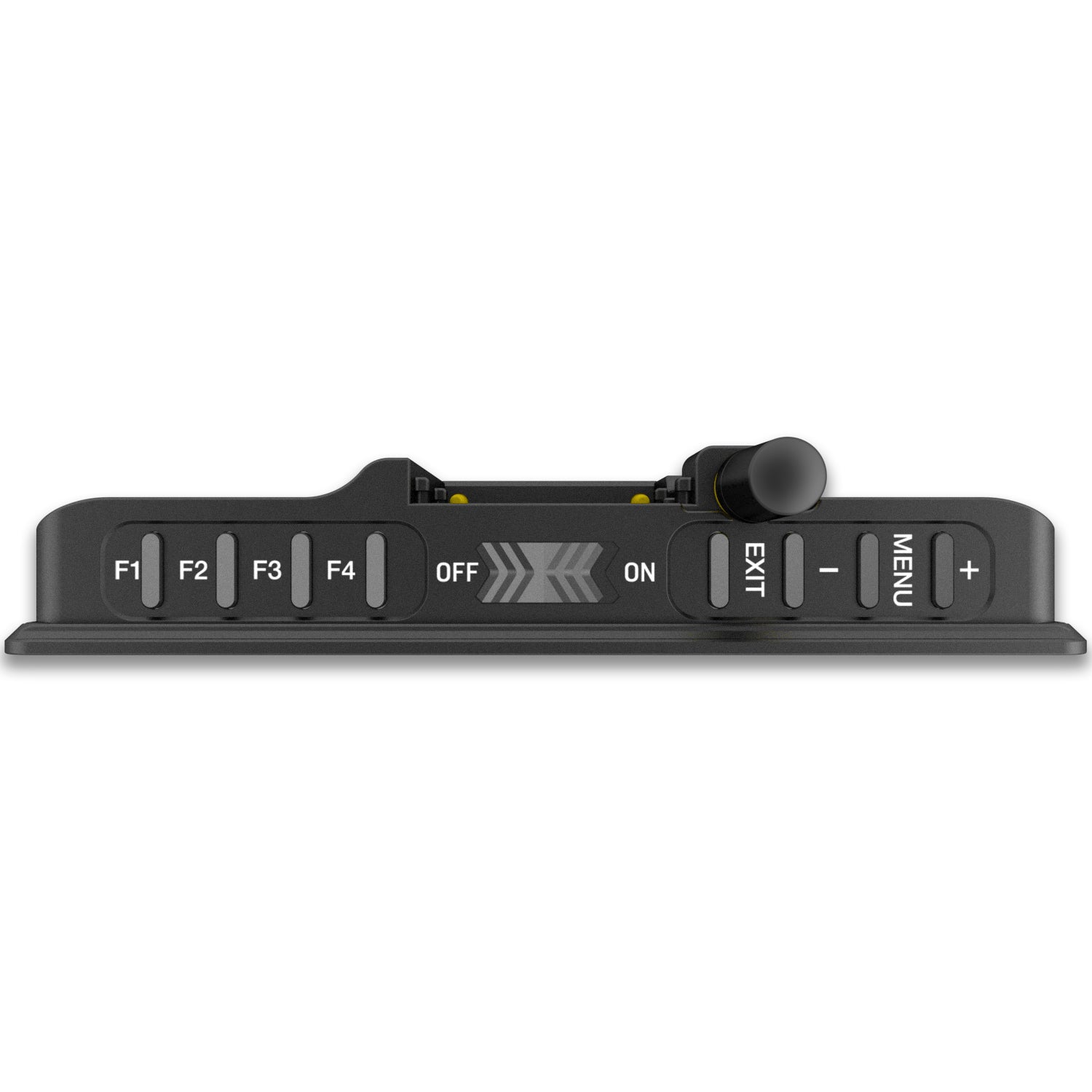

Portkeys LH5P 4K HDMI Touchscreen Monitor 5.5" 4K Touch Screen Monitor

• 5.5" HDMI UHD 4K Touch Monitor
• Supports up to UHD 4K30/DCI 4K24p input
• 220000 cd/m² brightness
• HDR preview
• Supports controlling camera shutter, focus and other settings
• 3D LUT support
• Using L series batteries
• Includes camera control cable
• BMPCC 6K/4K Bluetooth control

show
Panel type	IPS-Type LCD
Display size	5.5"" / 14.0 cm
Screen resolution	1920x1080
display ratio	16:9
Contrast	1000:1
Maximum brightness	1700cd/m2
Color bits/color display	8-Bit (1.67 billion colors)
Pixels per inch (ppi)	423ppi
LUT support	SDR
Image assistance	Warp desqueeze, blue only, inspection field, color temperature selection, customizable aspect ratio, false color, focus peaking, green only, H/V delay, histogram, image flip, OSD flip, pixel scaling, pixel to Pixel Scaling, R/G/B/Chrome Only, Screen Marking, Underscan, Vectorscope, Waveform, Zebra

I/O
image	1X HDMI-A input 1X HDMI-A output
voice input	HDMI
Sound monitoring	1 x 3.5 mm output
Built-in speakers	none
power supply	1 X 24 VDC input 1 X 2A / 5 VDC output
Other I/O	1X USB 2.0 (USB Type-A)

Format support
Image format	HDMI (8-Bit 4:4:4/4:2:2): DCI 2K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94

power supply
DC input	7 ~ 24 volts
Battery Type	1 X L-Series
Power consumption	10W

Appearance
Volume (W x H x D)	144 x 90 x 30.8mm
weight	350g
